The Intel® MPI Benchmarks¶
This tutorial is going to show all available options to place mpi processes and to select different Byte Transfer Layer (BLT) and Point-to-point Messaging Layer (PML).
Intel® MPI Benchmarks¶
Download¶
The Intel benchmark is the tool that we are going to use and explore. First of all download it from official github repository:
And navigate to the correct folder:
Compile¶
- Load your favourite mpi implementation with your desired compiler:
- Allocate the resources for the benchmark: 128 cores for each node and 2 nodes:
- And finally compile the software in the allocated machine:
If everything is went fine there must be present 5 executables:
IMB-MPI1IMB-EXTIMB-IOIMB-RMAIMB-NBC
Measure performance¶
In order to measure latency and bandwidth between different places
(cores,sockets,nodes and many other options) we need to bind
process to the desired places, with openMPI the argument that do the trick is
--map-by.
From documentation:
--map-by <foo>
Map to the specified object, defaults to socket. Supported options include
slot, hwthread, core, L1cache, L2cache, L3cache, socket, numa, board, node,
sequential, distance, and ppr ...
...
If --map-by is not specified the default behaviour is:
Please note that mpirun automatically binds processes as of the start of the
v1.8 series. Three binding patterns are used in the absence of any further
directives:
Bind to core:
when the number of processes is <= 2
Bind to socket:
when the number of processes is > 2
Bind to none:
when oversubscribed
The performance will be measured using IMB-MPI1 pingpong benchmark.
Map by core¶
Let's map all mpi processes in the same socket with --map-by core:
[user@login01 src_c]$ mpirun -np 2 --map-by core ./IMB-MPI1 pingpong
#----------------------------------------------------------------
# Intel(R) MPI Benchmarks 2018, MPI-1 part
#----------------------------------------------------------------
# Date : Mon Nov 21 11:28:46 2022
# Machine : x86_64
# System : Linux
# Release : 5.19.13-200.fc36.x86_64
# Version : #1 SMP PREEMPT_DYNAMIC Tue Oct 4 15:42:43 UTC 2022
# MPI Version : 3.1
# MPI Thread Environment:
# Calling sequence was:
# ./IMB-MPI1 pingpong
# Minimum message length in bytes: 0
# Maximum message length in bytes: 4194304
#
# MPI_Datatype : MPI_BYTE
# MPI_Datatype for reductions : MPI_FLOAT
# MPI_Op : MPI_SUM
#<img src=numa3.png>
#
# List of Benchmarks to run:
# PingPong
#---------------------------------------------------
# Benchmarking PingPong
# #processes = 2
#---------------------------------------------------
#bytes #repetitions t[usec] Mbytes/sec
0 1000 0.15 0.00
1 1000 0.14 6.95
2 1000 0.15 13.68
4 1000 0.14 28.17
8 1000 0.14 55.97
16 1000 0.17 95.43
32 1000 0.15 220.52
64 1000 0.15 440.28
128 1000 0.19 674.68
256 1000 0.19 1334.97
512 1000 0.21 2479.39
1024 1000 0.22 4605.93
2048 1000 0.30 6930.18
4096 1000 0.40 10225.02
8192 1000 0.56 14720.87
16384 1000 1.01 16236.54
32768 1000 1.67 19583.06
65536 640 2.97 22052.98
131072 320 5.20 25187.35
262144 160 24.28 10798.82
524288 80 43.56 12034.72
1048576 40 98.23 10674.20
2097152 20 172.21 12177.67
4194304 10 389.03 10781.55
The latency is very nice: 0.15 usec !
More on core mapping¶
Try now to select manually the cores by ID.
But first inspect the topology of the AMD machine.
Load hwloc tool and invoke srun -n1 lstopo, it will show the machine topology.

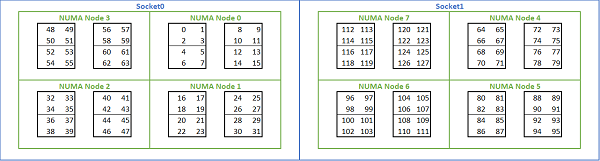

We can see that there are 8 NUMA regions, there are 4 of them for each socket
(indicated as Package) and then some cores are closer to each other.
Try to use core 0 and core 1 with the command mpirun -np 2 --cpu-list 0,1
./IMB-MPI1 pingpong, the result must be similar to the previous experiment.
But using the core 0 and 4 the latency grows up to 0.34. Note that core
0 and 4 are in the same NUMA region, but they don't share L3 cache.
[user@login01 src_c]$ mpirun -np 2 --cpu-list 0,4 ./IMB-MPI1 pingpong
...
...
#---------------------------------------------------
# Benchmarking PingPong
# #processes = 2
#---------------------------------------------------
#bytes #repetitions t[usec] Mbytes/sec
0 1000 0.34 0.00
1 1000 0.35 2.89
2 1000 0.35 5.78
...
Try by yourself to use --cpu-list and see the latency between:
-
core
0and core16 -
core
0and core32
Latency keep growing because we are selecting cores that are far from each
other. To inspect the distances use numactl -H and look at the distance
matrix.
[user@login01 src_c]$ srun -n1 numactl -H
available: 8 nodes (0-7)
node 0 cpus: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
node 0 size: 63926 MB
node 0 free: 60798 MB
node 1 cpus: 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
node 1 size: 64468 MB
node 1 free: 63068 MB
node 2 cpus: 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47
node 2 size: 64506 MB
node 2 free: 62843 MB
node 3 cpus: 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
node 3 size: 64494 MB
node 3 free: 61913 MB
node 4 cpus: 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79
node 4 size: 64506 MB
node 4 free: 62927 MB
node 5 cpus: 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95
node 5 size: 64506 MB
node 5 free: 62825 MB
node 6 cpus: 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111
node 6 size: 64506 MB
node 6 free: 62117 MB
node 7 cpus: 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127
node 7 size: 64499 MB
node 7 free: 62288 MB
node distances:
node 0 1 2 3 4 5 6 7
0: 10 12 12 12 32 32 32 32
1: 12 10 12 12 32 32 32 32
2: 12 12 10 12 32 32 32 32
3: 12 12 12 10 32 32 32 32
4: 32 32 32 32 10 12 12 12
5: 32 32 32 32 12 10 12 12
6: 32 32 32 32 12 12 10 12
7: 32 32 32 32 12 12 12 10
This complex output is due the AMD epyc Rome architecture.
Each CPU has 64 cores organized in 8 different CCD (Core Complex Die), each couple of closest CCD represent a NUMA region.
Each CCD contain 2 CCX (Core Complex) with 4 cores each, they share same L3 cache.
Summing up all the infos:
Map by socket¶
We desire to map one process to each socket:
[user@login01 src_c]$ mpirun -np 2 --map-by socket IMB-MPI1 pingpong
#----------------------------------------------------------------
# Intel(R) MPI Benchmarks 2018, MPI-1 part
#----------------------------------------------------------------
...
...
...
# PingPong
#---------------------------------------------------
# Benchmarking PingPong
# #processes = 2
#---------------------------------------------------
#bytes #repetitions t[usec] Mbytes/sec
0 1000 0.69 0.00
1 1000 0.69 1.44
2 1000 0.69 2.89
4 1000 0.71 5.62
8 1000 0.69 11.63
16 1000 0.69 23.27
32 1000 0.91 35.08
...
...
The latency between 2 sockets is larger than the previous experiment.
Map by node¶
When mapping by node we have to decide PML.
To explore PML select max message size up to 2^28 with -mslog 28 and
increase the number of repetitions to obtain more stable results with -iter
10000.
List all available PMLs using srun ompi_info | grep pml and select it:
mpirun -np 2 --map-by node --mca pml [ucx|ob1|cm ... ] ./IMB-MPI1 pingpong -msglog 28 -iter 10000
Explore by yourself all PMLs, you will discover that by default openMPI and
intelMPI select UCX.
All nodes are equipped with two 25 Gbit ethernet and one 100 Gbit Infiniband, try to discover the differences between the 2 devices using UCX pml.
To select a specific device UCX require the environment variable
UCX_NET_DEVICES using openMPI options -x UCX_NET_DEVICES=[my fast device].
First list all available devices:
-
You can use
ucx_info:srun -n1 ucx_info -d | grep Device -
Or you can trigger an error calling openMPI with a wrong device and let it suggest you the correct available devices:
[user@login01 src_c]$ mpirun -np 2 --map-by node --mca pml ucx -x UCX_NET_DEVICES=fake_device ./IMB-MPI1 pingpong
[1669031880.738755] [epyc005:588291:0] ucp_context.c:969 UCX WARN network device 'fake_device' is not available, please use one or more of: 'bond0'(tcp), 'ibp161s0'(tcp), 'lo'(tcp), 'ibp161s0:1'(ib)
bond0is the bond with ethernet card, it use TCP protocol.ibp161s0represent ip over Infiniband protocol that use Infiniband card with usual TCP socket.ibp161s0:1is the Infiniband Mellanox card that use Verbs instead of Socket
And finally select the correct device:
[user@login01 src_c]$ mpirun -np 2 --map-by node --mca pml ucx -x UCX_NET_DEVICES=ibp161s0:1 ./IMB-MPI1 pingpong
#----------------------------------------------------------------
# Intel(R) MPI Benchmarks 2018, MPI-1 part
#----------------------------------------------------------------
# Date : Mon Nov 21 13:02:28 2022
# Machine : x86_64
# System : Linux
# Release : 5.19.13-200.fc36.x86_64
# Version : #1 SMP PREEMPT_DYNAMIC Tue Oct 4 15:42:43 UTC 2022
# MPI Version : 3.1
# MPI Thread Environment:
# Calling sequence was:
# ./IMB-MPI1 pingpong
# Minimum message length in bytes: 0
# Maximum message length in bytes: 4194304
#
# MPI_Datatype : MPI_BYTE
# MPI_Datatype for reductions : MPI_FLOAT
# MPI_Op : MPI_SUM
#
#
# List of Benchmarks to run:
# PingPong
#---------------------------------------------------
# Benchmarking PingPong
# #processes = 2
#---------------------------------------------------
#bytes #repetitions t[usec] Mbytes/sec
0 1000 1.83 0.00
1 1000 1.81 0.55
2 1000 1.82 1.10
4 1000 1.81 2.21
8 1000 1.82 4.39
16 1000 1.81 8.84
32 1000 1.95 16.45
64 1000 1.97 32.42
128 1000 2.03 63.17
256 1000 3.67 69.71
512 1000 2.72 188.28
1024 1000 2.88 354.96
2048 1000 3.50 584.97
4096 1000 4.34 944.39
8192 1000 5.18 1580.68
16384 1000 5.87 2788.96
32768 1000 8.02 4083.34
65536 640 11.60 5651.24
131072 320 17.47 7503.69
262144 160 28.77 9110.73
524288 80 50.11 10462.14
1048576 40 92.75 11305.50
2097152 20 187.07 11210.56
4194304 10 347.16 12081.72
# All processes entering MPI_Finalize
Try to experiment by yourself different protocols and devices.
More on node mapping¶
Can we achieve better performance when mapping process across different nodes? Yes!
To achieve this result we need to write down a rankfile, a file that specify
where we want to bind each rank (the single mpi worker).
- Find in which nodes resources are allocated:
Write myrankfile, a simple text file to save:
rank 0 in epyc004 machine and rank 1 in epyc005,
bind the process to physical core set [96-111]. This core set is an entire
NUMA region.
Then run the benchmark:
[user@login01 src_c]$ mpirun -np 2 --rankfile myrankfile --report-bindings ./IMB-MPI1 pingpong -msglog 28 -iter 10000
[epyc005:591374] MCW rank 1 bound to socket 1[core 104[hwt 0]]: [./././././././././././././././././././././././././././././././././././././././././././././././././././././././././././././././.][././././././././././././././././././././././././././././././././././././././././B/././././././././././././././././././././././.]
[epyc004:746060] MCW rank 0 bound to socket 1[core 104[hwt 0]]: [./././././././././././././././././././././././././././././././././././././././././././././././././././././././././././././././.][././././././././././././././././././././././././././././././././././././././././B/././././././././././././././././././././././.]
#----------------------------------------------------------------
# Intel(R) MPI Benchmarks 2018, MPI-1 part
#----------------------------------------------------------------
# Date : Mon Nov 21 14:42:59 2022
# Machine : x86_64
# System : Linux
# Release : 5.19.13-200.fc36.x86_64
# Version : #1 SMP PREEMPT_DYNAMIC Tue Oct 4 15:42:43 UTC 2022
# MPI Version : 3.1
# MPI Thread Environment:
# Calling sequence was:
# ./IMB-MPI1 pingpong -msglog 28 -iter 10000
# Minimum message length in bytes: 0
# Maximum message length in bytes: 268435456
#
# MPI_Datatype : MPI_BYTE
# MPI_Datatype for reductions : MPI_FLOAT
# MPI_Op : MPI_SUM n which
#
#
# List of Benchmarks to run:
# PingPong
#---------------------------------------------------
# Benchmarking PingPong
# #processes = 2
#---------------------------------------------------
#bytes #repetitions t[usec] Mbytes/sec
0 10000 1.60 0.00
1 10000 1.59 0.63
2 10000 1.59 1.26
4 10000 1.60 2.51
8 10000 1.60 5.01
16 10000 1.60 10.01
32 10000 1.68 19.07
64 10000 1.76 36.41
128 10000 1.80 71.27
256 10000 2.20 116.55
512 10000 2.35 217.51
1024 10000 2.52 406.35
2048 10000 3.09 662.15
4096 10000 3.68 1113.35
8192 5120 4.20 1952.22
16384 2560 5.60 2926.00
32768 1280 7.77 4214.77
65536 640 10.80 6066.18
131072 320 17.25 7597.46
262144 160 28.39 9234.52
524288 80 49.74 10541.01
1048576 40 91.99 11398.50
2097152 20 176.96 11850.83
4194304 10 346.95 12089.23
8388608 5 686.40 12221.15
16777216 2 1365.14 12289.76
33554432 1 2727.66 12301.56
67108864 1 5445.08 12324.67
134217728 1 10876.35 12340.33
268435456 1 21745.45 12344.44
# All processes entering MPI_Finalize
Why the latency is lower and we gained 0.20 usec?
Because the PCI express port where the Infiniband adapter is plugged belong to
the NUMA region with core [96-111]. You can verify that with lstopo.
The mpi processes are then nearest as possible to the Infiniband card and the
latency is lower.
